Description:

Featurers:

Bi-directional slips and conventional three-element packing system ensure a positive seal

Large internal bypass reduces swabbing during running and retrieving

Rated up to 10,000 psi

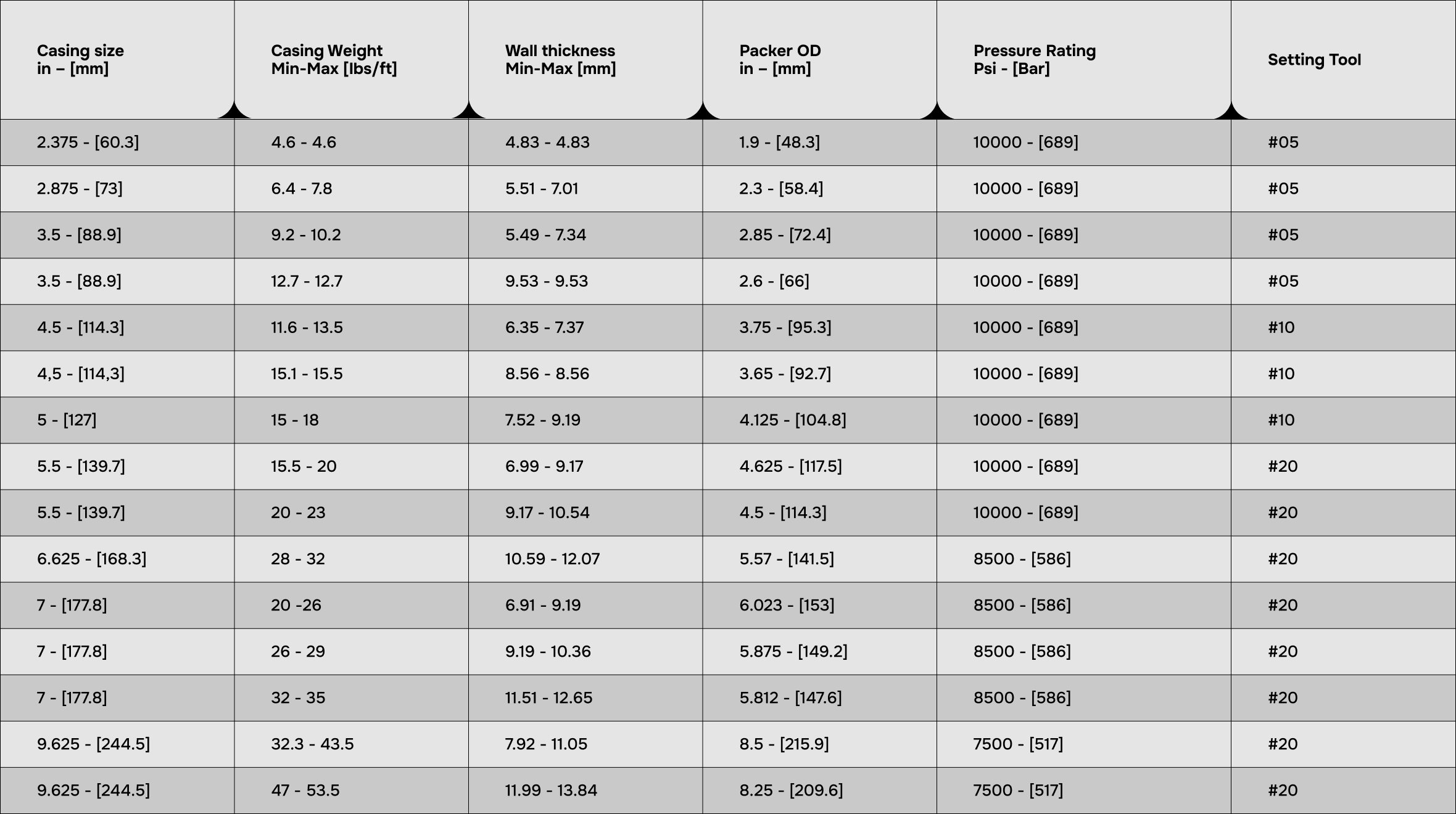

Specifications:

More details

Usage example

Casing pressure testing with WRBP Retrievable isolation plug in large-diameter casing

location

Netherlands

problem

The client required pressure testing of an 11 ¾" (298.5 mm) casing string in an existing wellbore. The objective was to isolate the productive formation to allow pressure testing of the casing at 30 MPa overpressure—a challenging task for plugs of this diameter.

solution

SYMOIL supplied a WRBP Plug designed for deployment and setting via slickline. This plug was selected for its robust sealing performance and ability to withstand high differential pressures. The plug was deployed using PHOENIX, an electronic setting tool that enables precise placement in deviated wells using slickline.

work process

The WRBP was deployed into the well on slickline and set inside the 11 ¾" casing at a depth of 2,374 m in a single run, without requiring additional equipment

The well was deviated and filled with heavy drilling mud at a density of 1.8 g/cm³. The plug was set using the PHOENIX electronic setting tool

‍

A secure pressure barrier was established and successfully held 34 MPa, providing full isolation of the casing interior. The casing was then pressure-tested to 30 MPa, confirming the plug’s reliable performance

After testing, the WRBP was successfully retrieved using a standard fishing tool on drill pipe
